WrapLaminationMachine
WLM - 800-1500
Technical Specification:

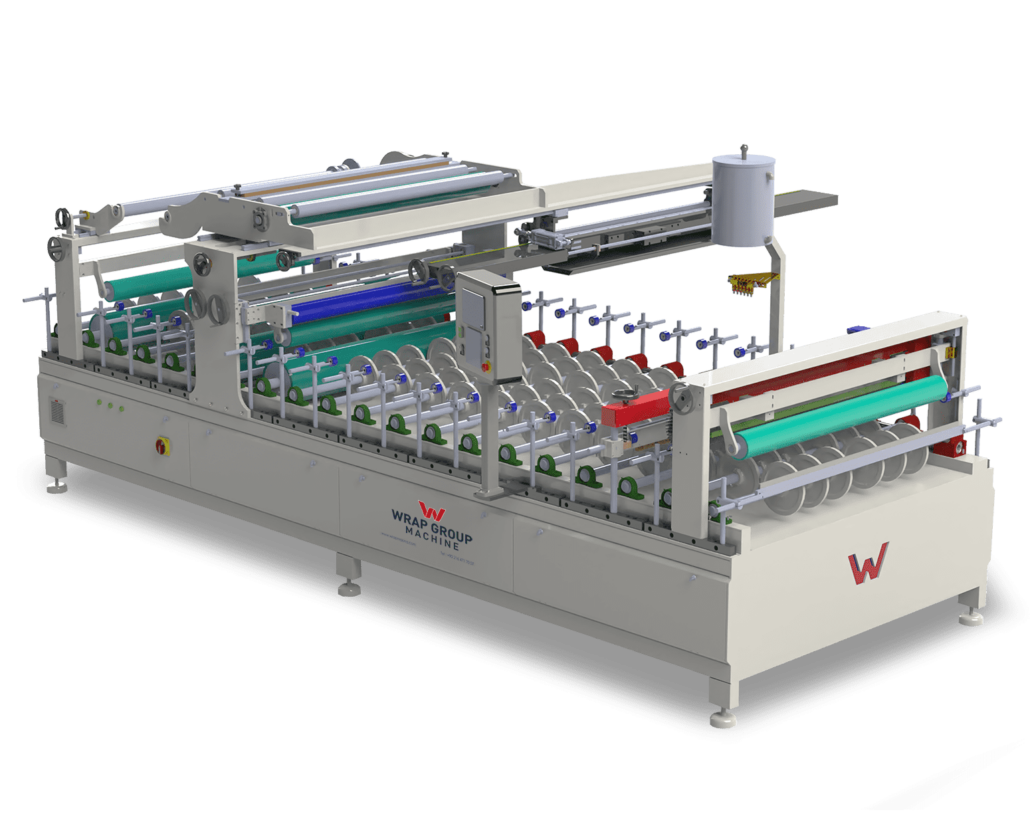

WLM 1500 -W6-P Panel Lamination Machine
The WLM/Wrap Lamination Machine 1500 / W5-P is a panel wrapping machine that uses hotmelt polyurethane adhesive. The width and length of the machine is produced according to your specifications. With a special design, the cleaning and maintenance of the glue head are greatly facilitated.
It performs PVC, CPL, PP, and Finish foil lamination on PVC, Aluminum, Wood, and Composite panels and materials.
Type of adhesive | : | Polyurathane Hot Melt Adhesive |
Type of panel to be wrapped | : | PVC, MDF and Aluminum |
Type of wrapping foil | : | PVC, CPL ,PP and Finish Foil |
Max. Foil width | : | 1500 mm |
Max. Panel width | : | 1500 mm |
Max Profile or panel height |
| 80 mm |
Working speed | : | 0-40 m/min |
Total power | : | 55 kW |
Motor power | : | (4 и 2,2) kW AC Geared motor, controlled by digital frequency invertor |
Frequency | : | 50-60 Hz |
Voltage | : | 380 Volt |
Air Pressure | : | 6-8 bar |
Machine Dimensions | : | 2200x5000x4350 mm |
Weight | : | 5200 KG |
Machine Colour | : | RAL 3000 / 7035 |
RAL 3002/7035 |
